Codecs

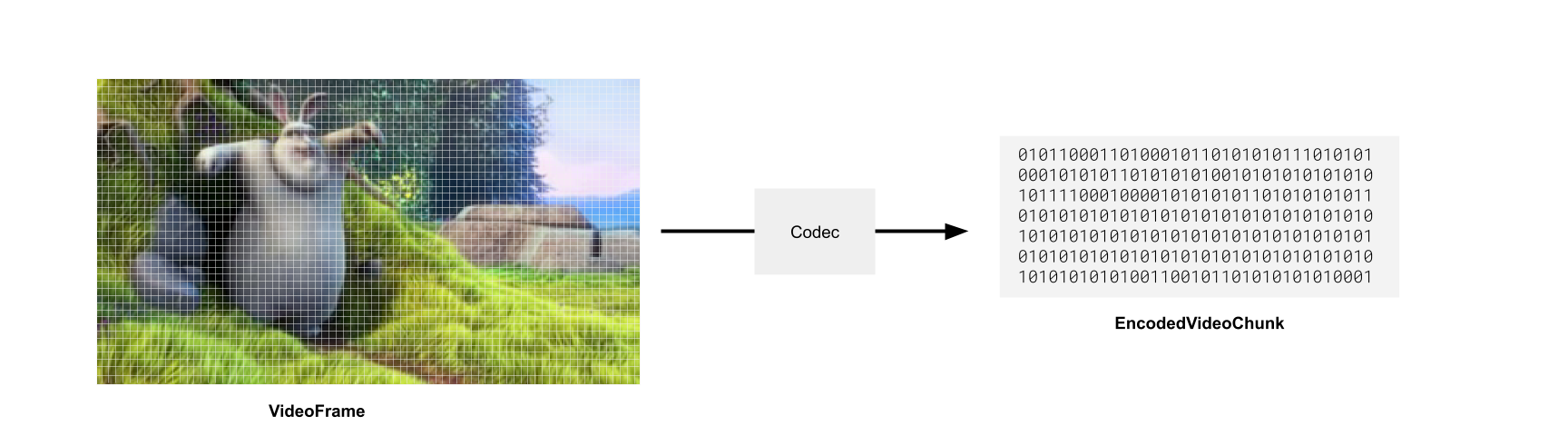

Codecs are the algorithms for turning raw video frames into compact binary encoded video data.

We won’t go into how these algorithms actually work (video compression is it’s own big-buck-bunny-sized rabbit hole) but this article will cover the practical basics that you need to know as a developer building a WebCodecs application.

Main Video Codecs

There are a few major video codecs used in the industry, here are the ones you need to know about for WebCodecs.

H264: Also known as ‘AVC’ (Advanced Video Codec). By far the most common codec for common consumer video use. Most “mp4” files that you will find will typically use the h264 codec. This is a patented codec, so while users can freely use h264 players to watch video, large organizations which encode lots of video using h264 may be liable to pay patent royalties.

H265 - Also known as ‘HEVC’. Less common, newer, and has better compression than h264. Fairly widely supported but with major exceptions, same patent concerns as the h264.

VP8 - Open source video codec, used often in WebRTC because it is very fast for encoding, though the quality of compression is not as good as other codecs.

VP9 - Successor to VP8, also open source, devloped at Google, many videos on YouTube are encoded with VP9 and also fairly well supported

AV1 - The latest, most advanced open source codec, with better compression than all the above options, developed by an independent consortium of organizations. Decoding/playback is widely supported across devices and browsers, but because encoding is significantly slower / more expensive than VP9, encoding support on consumer devices is not as widespread.

How to practically chose a codec

Decoding

If you have a video supplied by a user or some standard 3rd party source, the codec (and specific codec string) will be stored in the metadata of the actual video file.

In that sense, you don’t have a choice of codec, you just need to find the codec string from the video to feed to the VideoDecoder, and demuxing libraries provide this.

const input = new Input({
    formats: [MP4],
    source: new BlobSource(file),
});

const videoTrack = await input.getPrimaryVideoTrack();
// videoTrack.codec => avc (h264)
const codec_string = await input.getCodecParameterString();
// Full codec string used by decoder
const decoderConfig = await videoTrack.getDecoderConfig();
// This is what you'd supply to the `VideoDecoder` to start decoding

Encoding

Here you do have a choice of what codec to use. Here’s the TLDR version:

• If you’re generating user-facing videos, espcially if you want to output .mp4 files, use h264
• If it’s for internal use and/or you want to use .webm files, use VP9 (open source, better compression)
• If you have strong opinions or object to the above, this section isn’t for you

Compatability

Don’t forget that not all containers work with all codecs. Here’s the simplified version of which codecs are supported by which containers.

Codec	MP4	WebM
H.264	✅	❌
H.265	✅	❌
VP8	❌	✅
VP9	🟡	✅
AV1	🟡	✅

Codec strings

Unhelpfully, WebCodecs doesn’t work with simple codec choices like VP9

const codec = VideoEncoder({
    codec: 'vp9', //This won't work!
    //...
})

Instead, you need a fully qualified codec string such as: vp09.00.10.08 which includes additional settings such as levels and profiles, which are high-level settings/configs you can choose, which affect low-level encoding choices such as macro-block size and chrome-sub-sampling used by the encoder.

Even more unhelpfully, W3C doesn’t keep a list of valid codec strings[1].

If you just want to encode a video and get on with your life, here’s a quick & easy list of codec strings to maximize compatability.

h264

• ‘avc1.42001f’ - base profile, most comptable, supports up to 720p
• ‘avc1.42003e’ - base profile, level 6.2 (supports up to 8k)
• ‘avc1.4d0034’ - main profile, level 5.2 (supports up to 4K)
• ‘avc1.64003e’ - high profile - level 6.2 (supports up to 8k)

vp9

• ‘vp9.00.10.08.00’ - basic, most compatible, level 1
• ‘vp9.00.61.08.00’ - level 6
• ‘vp9.00.50.08.00’ - level 5
• ‘vp9.00.40.08.00’ - level 4

How to choose a codec string

MediaBunny

The easiest way is to use MediaBunny, where you don’t have to choose a codec string. MediaBunny handles this for you internally.

import { Output, Mp4OutputFormat,
BufferTarget, VideoSampleSource, VideoSample} from 'mediabunny';

const output = new Output({
    format: new Mp4OutputFormat(),
    target: new BufferTarget(),
});

const videoSource = new VideoSampleSource({
    codec: 'avc', // You just specify avc/h264, MediaBunny handles codec string
    bitrate: QUALITY_HIGH,
});

output.addVideoTrack(videoSource, { frameRate: 30 });

for (const frame of frames){
    videoSource.add(new VideoSample(frame))
}

”Good enough” option

If you don’t want to ue MediaBunny, and just want some code that works and mimimizes the chance of issues, you can also just specify a bunch of options (best quality /least supported to worst quality/best supported), and pick the first one that is supported.

H264

let codec_string;

const codecs =['avc1.64003e', 'avc1.4d0034',  'avc1.42003e', 'avc1.42001f'];

for(const test_codec of codecs){

    const videoEncoderConfig = {
        codec: test_codec,
        width,
        height,
        bitrate,
        framerate
    };

    const isSupported = await VideoEncoder.isConfigSupported(videoEncoderConfig);

    if(isSupported.supported){
        codec_string = test_codec;
        break;
    }
}

VP9

let codec_string;

const codecs =['vp9.00.61.08.00', 'vp9.00.50.08.00',  'vp9.00.40.08.00', 'vp9.00.10.08.00'];

for(const test_codec of codecs){

    const videoEncoderConfig = {
        codec: test_codec,
        width,
        height,
        bitrate,
        framerate
    };

    const isSupported = await VideoEncoder.isConfigSupported(videoEncoderConfig);

    if(isSupported.supported){
        codec_string = test_codec;
        break;
    }
}

Look up

If you want something more formal/precise, and don’t want to use MediaBunny, you can use just the lookup table from MediaBunny (taken from MediaBunny source), which is exposed via webcodecs-utils

import { getCodecString, getBitrate } from 'webcodecs-utils';

const bitrate = getBitrate(1920, 1080, 30, 'good')
const codec_string = getCodecString('avc', 1920, 1080, bitrate);
// avc1.640028

Comprehensive list of codec strings

See here

Device support

See here
